how to delete single trained CCs in PixyMon?
I only can see how to delete
all trained signature colors and all trained CCs all at once,
or just to delete single signatures (1-7),
but I cant find a way to keep the trained signatures in memory and just delete, e.g., CC_1 or CC_3.
You can delete the color code signatures as you normally would. So for example if signature 1 is a color code signature, by deleting signature 1, it deletes it (even though it’s a color code signature).
But currently there is no way to delete a given color code so that Pixy doesn’t report it. That is, no way to delete color code 1231 for example.
CC_1 and CC_3 don’t seem like color codes because there is only 1 signature number there — color codes are two or more signatures reported as a single block, so just making sure!
thank you,

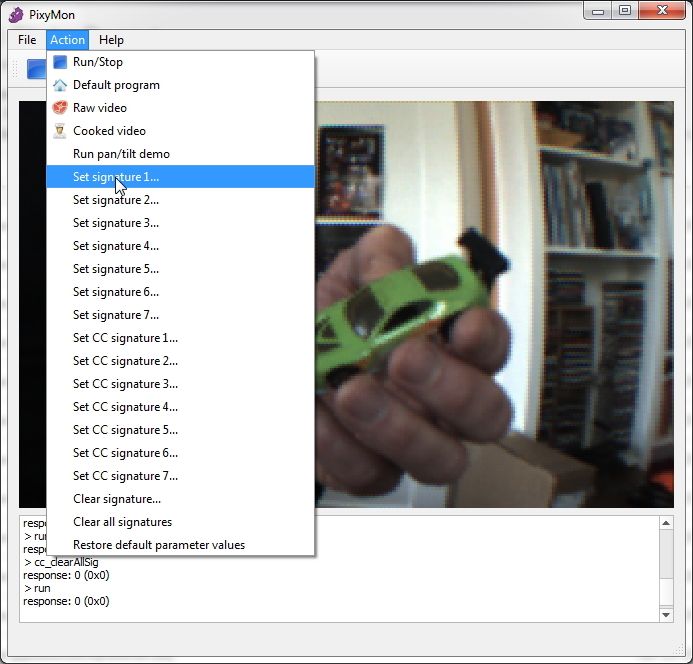

I was referring to this PixyMon menu where you can store or delete both signatures and CCs.
if I store a color to signature 1-7, e.g.: 3, then I can delete it by clicking on “clear signature” and then enter “3”.
!http://i74.photobucket.com/albums/i241/cmucam/Image%20176_zpsr3k7xfzb.jpg!
so if I store a CC to CC 1-7, e.g. 3, I expected to erase it by clicking on any “clear ColorCode” and enter “3”
- or -
if you had been counting CC further on 8-14, I would probably to click on “clear signature” and then enter “10” (as it’s the 3rd one starting off at 8).
But when reading across your answer:
I still have +absolutely no clue+ how you are coding, storing, decoding, and retrieving color code.
I would really strongly appreciate if you wrote a tutorial about
- what is a color code?
- how to mark a color code by Pixy Mon
- what conditions must color code regions satisfy
- how is Pixy storing color codes
- how can you read the color codes by their positions by Arduino Sketch
everything extensively in little by little detailed steps.
